Star Fox 64

Star Fox 64 is the third second game in the Star Fox series, salvaging some ideas from the then-unreleased Star Fox 2.

Development Info Prototype Info Prerelease Info Bugs Unused GraphicsScrapped graphics including the Cornerian soldier's portrait are found in here. Unused Sound EffectsHurry Fox. I'm waiting for you.

Unused Models#

Bomb Pickup#

Exclusive to Aquas is an unused bomb model that resembles a torpedo. It can be seen by spawning a bomb drop in the level. The model isn't scaled properly in-game, so it appears very large.

Note: In the screenshots, the Aquas map was manually brightened up via hacking for a better capture.

Unused Code#

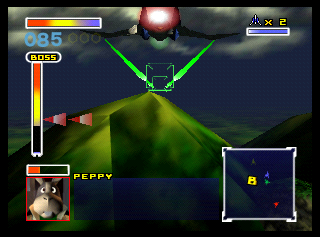

Unused Laser Types#

Unused coding exists for a different type of single shot laser. This coding is only used by Star Fox and Star Wolf. There's a single dual red laser that isn't actually used by Star Wolf. They are all purely cosmetic differences.

00 Regular
01 Single red laser (used by Star Wolf)
02 Dual green laser (used by Bill)
03 Dual red laser

In the Star Wolf Venom battle, Star Wolf only uses ID 01 laser type, not the 03 type.

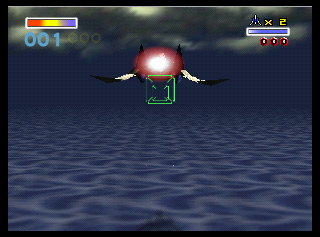

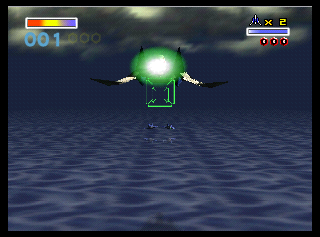

Unused Engine Color#

An unused light orange-ish engine color set remains in the game. This color set isn't exclusive to Star Fox, and any enemy in the game could have used it as well. The entire set of engine colors can be seen below.

Red (used on ground levels)	Blue (used in space levels)
Green (used only by enemies)	Orange (Copperhead Missile)

The first two codes are for Fox and the last two codes are for Falco, Peppy and Slippy. This was possibly an early color design for Fox's team as the actor IDs for each color match Fox, Falco, Slippy, and Peppy in that order. The 3DS remake would later implement this in its multiplayer mode.

00 = Red
01 = Blue
02 = Green
03 = Orange

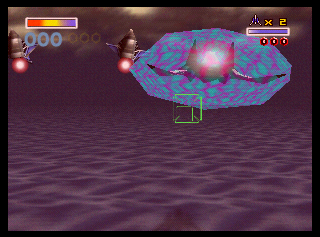

Unused Shield#

Watch on YouTube

A shield is used by Star Wolf and the enemies on Bolse before all barriers are destroyed, but is never made available to the player. It can be enabled with the following GameShark codes, depending on version.

If you collide with anything, you won't take any damage, nor will you ever lose your wings. The shield is only visible in Arwing levels, but also gives invincibility to the Landmaster and the Blue-Marine.

This was later made available in the 3D remake, as a multiplayer powerup.

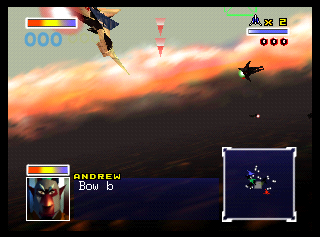

Star Wolf on Katina#

For some reason, Star Wolf's bank is loaded in on Katina, though there are no triggers for them to spawn normally. This is the only all-range mode fight that they are loaded in, outside of the regular planets you fight them in. The game will crash if they are attempted to be loaded in to any other all-range mode they do not normally appear in.

Unused Areas#

Venom 1 Sub-Section#

Watch on YouTube

An unused sub-section after the regular data of Venom 1 can be seen here, which is a very short and glitched version of the level. It's possible that this may have been an early way to get to Venom 2 but was scrapped very early on.

Apply this code to the US 1.0 version of the game to always enable sub-section loading if the level has one: 8016E0EF 0001

Area 6 Level#

An unused Area 6-like level can be seen here. It simply contains a worm-like enemy from Meteo. The level cannot be completed.

Enter a planet with the below code on to appear here.

Crash Debugger#

Star Fox 64 contains a very simple crash debugger. To trigger it, crash the game in some way; you should then see a white line in the top right corner. Now hold R and input the following button sequence:

• C-Left + C-Down
• A (twice)
• B (twice)
• C-Left (twice)
• A
• B
• C-Left (five times)
• Start

All there is to the crash debugger is a single page containing the registers at the time of crashing.

Debug Text#

The following offsets correspond to file 01_00001050-000E93C0_vs00001050 in the decompressed version of Star Fox 64 (J).

0xC15D0

Table Remake
-------------------Undefined Ctype
Error? Limit OVER %d in %d
Get %x %x
Break %x %d %d
Terminate-Canceled Channel %d,Phase %d
S->W
W->S
S-Resample Pitch %x (old %d -> delay %d)
Warning:Kill Note %x
Kill Voice %d (ID %d) %d
Warning: Running Sequence's data disappear!
%x %x %x
Audio:Memory:Heap OverFlow : Not Allocate %d!
%x %x %x
Audio:Memory:Heap OverFlow : Not Allocate %d!
Audio:Memory:DataHeap Not Allocate
StayHeap Not Allocate %d
AutoHeap Not Allocate %d
Status ID0 : %d ID1 : %d
id 0 is Stopping
id 0 is Stop
id 1 is Stopping
id 1 is Stop
WARNING: NO FREE AUTOSEQ AREA.
WARNING: NO STOP AUTO AREA.
AND TRY FORCE TO STOP SIDE Check ID0 (seq ID %d) Useing ...
Check ID1 (seq ID %d) Useing ...
No Free Seq area.
CH %d: ID %d
TWO SIDES ARE LOADING... ALLOC CANCELED.
WARNING: Before Area Overlaid After.
WARNING: After Area Overlaid Before.
MEMORY:SzHeapAlloc ERROR: sza->side %d
Audio:MEMORY:SzHeap Overflow error. (%d bytes)
Auto Heap Unhit for ID %d
Heap Reconstruct Start %x
---------------------------------------TEMPO %d %f
%f
%f
AHPBASE %x
AHPCUR %x
HeapTop %x
SynoutRate %d / %d
FXSIZE %d
FXCOMP %d
FXDOWN %d
WaveCacheLen: %d
SpecChange Finished
Warning:Emem Over,not alloc %d
Single AutoSize %d
Single Ptr %x
Request--------Single-Auto, %d
Retry %x, %x, len %x
DMAing list %d is killed.
Try Kill %d
Try Kill %x %x
Try Kill %x %x %x
Rom back %x %x
Error sw NULL
Request--------Single-Stay, %d
Try Kill %d
Try Kill %x %x
Try Kill %x %x %x
CAUTION:WAVE CACHE FULL %d
SUPERDMA
Bank Change... top %d lba %d
BankCount %d
BANK LOAD MISS! FOR %d
BankCount %d
Flush Start
%d ->%d
useflag %d
BankCount %d
%2x
StartSeq (Group %d,Seq %d) Process finish
LoadCtrl, Ptr %x and Media is %d
Load Bank, Type %d , ID %d get auto
get s-auto %x
Seq %d Write ID OK %d!
Banknumber %d
Bank Offset %x %d %d
PEP Touch %x
FastCopy
---Block Fast here
===Block Fast end
Error: Cannot DMA Media [%d]
Warning: size not align 16 %x (%s)
Load Bank BG, Type %d , ID %d
get auto
get s-auto %x
Clear Workarea %x -%x size %x
AudioHeap is %x
Heap reset.Synth Change %x
Heap %x %x %x
Main Heap Initialize.
%d :WaveA %d WaveB %d Inst %d,Perc %d
---------- Init Completed. ------------
Syndrv :[%6d]
Seqdrv :[%6d]
audiodata :[%6d]
----
Entry--- %d %d
---Block LPS here
===Block LPS end
SLOWCOPY
Req: Src %x Dest %x Len %x,media %d,retcode %d
Remain Size %d
---Block BG here
===Block BG end
Retcode %x
Other Type: Not Write ID.
BGLOAD:Error: dma length 0
BGCOPYError: Already wavetable is touched %x.
Touch Warning: Length zero %x
It's busy now!!!!! %d
BG LOAD BUFFER is OVER.
Warning: Length zero %x
Wave Load %d
Total Bg Wave Load %d
Receive %d
============Error: Magic is Broken after loading.
Remain DMA: %d
N start %d
============Error: Magic is Broken: %x
Error: No Handle.
Success: %x
Audio: setvol: volume minus %f
Audio: setvol: volume overflow %f
Audio: setpitch: pitch zero or minus %f
Audio: voiceman: No bank error %d
Audio: voiceman: progNo. overflow %d,%d
ptr2 %x
Audio: voiceman: progNo. undefined %d,%d
Audio: voiceman: No bank error %d
Audio: voiceman: Percussion Overflow %d,%d
Audio: voiceman: Percussion table pointer (bank %d) is irregular %x.
Audio: voiceman: Percpointer NULL %d,%d
--4 %x
----------------------Double-Error CH: %x %f
----------------------Double-Error NT: %x
CAUTION:SUB IS SEPARATED FROM GROUP
CAUTION:PAUSE EMERGENCY
Error:Wait Track disappear
NoteOff Comes during wait release %x (note %x)
Slow Release Batting
@ Audio:Wavemem: Bad voiceno (%d)
Audio: C-Alloc : Dealloc voice is NULL
Alloc Error:Dim voice-Alloc %d
Error:Same List Add
Already Cut
Audio: C-Alloc : lowerPrio is NULL
Intterupt UseStop %d (Kill %d)
Intterupt RelWait %d (Kill %d)
Drop Voice (Prio %x)
Audio:Envp: overflow %f
Audio:Track:Warning: No Free Notetrack
SUBTRACK DIM
Audio:Track: Warning :SUBTRACK had been stolen by other Group.
SEQID %d,BANKID %d
ERR:SUBTRACK %d NOT ALLOCATED
Stop Release
Error:Same List Add
Wait Time out!
Macro Level Over Error!
Macro Level Over Error!
WARNING: NPRG: cannot change %d
Audio:Track:NOTE:UNDEFINED NOTE COM. %x
Audio: Note:Velocity Error %d
Error: Subtrack no prg.
ERR %x
Error: Your assignchannel is stolen.
Audio:Track :Call Macro Level Over Error!
Audio:Track :Loops Macro Level Over Error!
SUB:ERR:BANK %d NOT CACHED.
SUB:ERR:BANK %d NOT CACHED.
Audio:Track: CTBLCALL Macro Level Over Error!
Set Noise %d
[%2x]
Err :Sub %x ,address %x:Undefined SubTrack Function %x
VoiceLoad Error Bank:%d,Prog:%d
Disappear Sequence or Bank %d [FIN] group.
Macro Level Over Error!
Macro Level Over Error!
Group:Undefine upper C0h command (%x)
Group:Undefined Command

0xC4CE0

インターフェース回路反応なし (ＲＥＡＤ)
EEPROM READ %02X: %02X %02X %02X %02X %02X %02X %02X %02X
ＥＥＰＲＯＭ インターフェース回路反応なし (ＷＲＩＴＥ)
EEPROM WRITE %02X: %02X %02X %02X %02X %02X %02X %02X %02X
ＥＥＰＲＯＭ が ありません
ＥＥＰＲＯＭ が ありません
Interrupt
TLB modification
TLB exception on load
TLB exception on store
Address error on load
Address error on store
Bus error on inst.
Bus error on data
System call exception
Breakpoint exception
Reserved instruction
Coprocessor unusable
Arithmetic overflow
Trap exception
Virtual coherency on inst.
Floating point exception
Watchpoint exception
Virtual coherency on data
Unimplemented operation
Invalid operation
Division by zero
Overflow
Underflow
Inexact operation
F%02d:%.3eF%02d:---------FPCSR:%08XH(%s)
THREAD:%d (%s)
PC:%08XH SR:%08XH   VA:%08XH
AT:%08XH V0:%08XH   V1:%08XH
A0:%08XH A1:%08XH   A2:%08XH
A3:%08XH T0:%08XH   T1:%08XH
T2:%08XH T3:%08XH   T4:%08XH
T5:%08XH T6:%08XH   T7:%08XH
S0:%08XH S1:%08XH   S2:%08XH
S3:%08XH S4:%08XH   S5:%08XH
S6:%08XH S7:%08XH   T8:%08XH
T9:%08XH GP:%08XH   SP:%08XH
S8:%08XH RA:%08XH

Japanese text says:

No interface cycle response (READ)

EEPROM No interface cycle response (WRITE)

EEPROM not found

EEPROM not found

0xC5990

preload start (%d):
%d
***** START SEQ : %d *****
spec change finished !!!
interface wait spec change finished !!!
********** SE Interface Buffer SE Stop %08X **********
MedlayStart :
MedlayStart :
MedlayStart(TuneUp) :
MedlayStart(cross) :
MedlayEnd :
MedlayWait : %d
ControlSePicth : %f %f %f
ChangeWarningSePara : %d %d
set Grp 0 port %02x
main BGM start %08X
<<<<< PlayCrossMixBgm pass !!! >>>>>
SetVolumeBallnce %d %d
START HANDLE : %d (old:%d)
All Sound Fade Out time:%d

0xC5CB0

DAC:Lost 1 Frame.
DMA: Request queue over.( %d )
Spec Change Override. %d -> %d
Audio:now-max tasklen is %d / %d
Audio:Warning:ABI Tasklist length over (%d)
BGLOAD Start %d
Error: OverFlow Your Request
---AudioSending (%d->%d)
AudioSend: %d -> %d (%d)
Continue Port %d -> %d
Sync-Frame Break. (Remain %d)
Undefined Port Command %d
specchg conjunction error (Msg:%d Cur:%d)
Error : Queue is not empty ( %x )

0xCC0C0

$Id: fox_edisplay.c,v 1.193 1997/04/01 14:50:15 morita Exp $

0xCED78

 ABCDEFGHIJKLMNOPQRSTUVWXYZ!:-.0123456789
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789st

0x?

アイウエオカキクケコサシスセソタチツテトナニヌネノハヒフヘホマミムメモヤユヨラリルレロワヲンァィゥェォッャュョベゾボビピグペドー６ＸＹＺ

This is the Japanese katakana alphabet along with 6, X,Y,Z.

0xDA8C8

FOX
PEP
SLP
FAL
WLF
LON
PIG
ANL
BIL
CAT

0xDA9B0

time=%d
time=%d
time=%d
time=%d
time=%d

0xDB2F0

Demo_Time=%d
Demo_Time=%d
d Enm->wrk0 %d

0xDB940

HELP!!
HELP!!
HELP!!
HELP!!

0xDBB40

DMA MODE ERROR %d

0xDBF70

CHIME SET
BOMB SET 1
BOMB SET 2
center_X
%f
Enm->obj.pos.x %f

0xDC5F0

Enm->obj.pos.y + tmp_xyz.y=<%10.3f>

0xDCDD0

Enm->wrk3=<%d>
a=<%d>
a=<%d>
ＺＯ＿ＭＯＶＥ ＨＥＬＰ %d
ＡＣ＿ＭＯＶＥ ＨＥＬＰ %d
ＺＯ＿ＤＩＳＰ ＨＥＬＰ %d
ＡＣ＿ＤＩＳＰ ＨＥＬＰ %d

0xDD290

そのような フェード は ない (%d) ?

There isn't that kind of fade (%d) ?

0xDD2C0

 OK
DOWN
フォックス
ファルコ
スリッピー
ペッピー
ウルフ
レオン
ピグマ
アンドリュー
ビル

Fox, Falco, Slippy, Peppy, Wolf, Leon, Pigma, Andrew, Bill

0xDDD70

play_time = %d

0xDE670

DOWN
DOWN

0xDECD0

TOTAL
SCORE
FOX
PEPPY
SLIPPY
FALCO

Revisional Differences#

On v1.0, achieving a score of over 511 on a single level causes the game to subtract 256 from this level's score and the total score on the rankings. v1.1 patched this by limiting the score on a single level to 511.

Regional Differences#

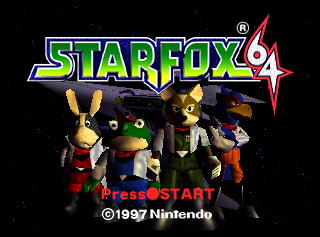

Title Screen#

The North American and Japanese versions have slightly different logos at the title screen. The North American logo naturally lacks the katakana transcription of the title but also has a slightly brighter color scheme and removes the "fox tail" behind the 64 graphic, which was itself redrawn to be less stylized. The European and Australian versions were renamed Lylat Wars, not Starwing 64 as would logically be expected. Who knows why.

Japan	USA	Europe/Australia

Script Changes#

Mission Briefings

Corneria

Sector X

Zoness

Area 6

Venom I

Aquas

Sector Z

Macbeth

Katina

Venom II

Common

Others#

• In the Japanese version, the character icons do not sync with their voices and simply animate all the way through. The sync was added for the English voices.
• In both the European and Australian versions, there is an option to choose between English and Lylat - the latter being akin to the gibberish of its predecessor.

North America/Japan	Europe/Australia	Language Option

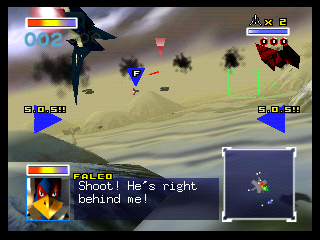

• When a teammate is in trouble, an arrow pointing in their direction appears on-screen, labelled HELP!!; in the European versions, it is labelled S.O.S!!.

North America/Japan	Europe/Australia

• The Great Fox's texture with the "STARFOX" logo is different depending on the region.

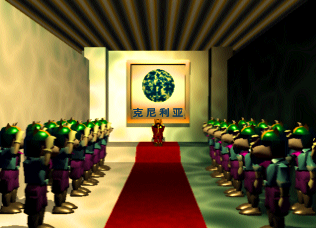

Japan	North America/Europe	China

• The red line Corneria boss in the Japanese version opens his hatches quicker.
• There are some extra enemies in some levels depending on the region:
  • In Meteo, the Japanese version has one less Killer Bee than the North American one (where there is an extra Killer Bee if you defeat the first Killer Bee(s) quick enough).
  • In Expert Mode, Aquas has three enemies in the Japanese version that were removed in the North American version.

iQue Player Differences#

The game was released in China for the iQue Player in November 2003.

General Differences#

Every voice clip, even unused ones, have been re-dubbed in Chinese.

Boot Logo#

Nintendo 64 iQue Player The Nintendo boot logo at startup was updated. Opening Logo# Nintendo 64 iQue Player In the game's intro, the Nintendo 64 logo was changed to the iQue logo. Title Screen# Nintendo 64 iQue Player Weirdly, in the title screen, the iQue version still has a controllable "logo", but it is invisible. The copyright info on the title screen was updated, adding an additional copyright year for iQue. No Controller# Nintendo 64 iQue Player (unused) The "No Controller" screen text was updated despite it being impossible to see since the iQue Player console is built in to the controller and is thus always plugged in. Multiplayer# Nintendo 64 iQue Player In the Multiplayer mode (VS.), the Nintendo 64 console was changed to the iQue Player multitap. Game Over# Nintendo 64 iQue Player The "Game Over" font models were redesigned in Chinese. Ending# Nintendo 64 iQue Player In the scene where the Star Fox team walks to General Pepper, the Corneria poster in the pre-rendered background was edited, but they have done it very lazily, most likely just placing an image over the area on account of Pepper's head being partially covered. Others# The teammates' shield gauge were vertically stretched. Nintendo 64 iQue Player The on-screen map border color was changed from white to grey. The Arwing's texture with the "SF" symbol is different. Nintendo 64 iQue Player Oddities# Dead Ends# While it seems endless, the Venom 1 tunnel does indeed end if you manage to survive for about eight minutes. It even gives you an extra life before you collide into the wall and die. Something similar happens after failing to redirect the train on MacBeth and therefore entering the boss fight. During the battle, distance markers will appear on the ground starting at 100 between the rails for the main line and the fuel bunker. If they reach 500, the player will have about 30 seconds remaining before the boss will crash into the player, instantly killing them. Generally, this will happen 4 minutes after the train conductor activates the flying boss. References# Producer was Shigeru Miyamoto.↩︎ N64 Frame. "Star Fox 64 (Nintendo) - June 30, 97"↩︎ Game Champ 게임챔프 1997-12, p. 58↩︎ iQue Ltd.↩︎ スターフォックス64↩︎ Super Smash Bros. Brawl Chronicle↩︎ www.NINTENDO.se. "Lylat Wars Action Nintendo 1997-10-06"↩︎ Hyper 047, p. 33↩︎ Rentals in Australia↩︎ SuperGamePower - Ano 03 No. 042 (1997-09)(Nova Cultural)(BR)(pt), p. 2↩︎ v · t · e The Star Fox series SNES Star Fox (Prototypes) • Star Fox 2 (Prototypes) Nintendo 64 Star Fox 64 (iQue Prototype) GameCube Star Fox Adventures (Prototypes) • Star Fox: Assault Nintendo DS Star Fox Command Nintendo 3DS Star Fox 64 3D Nintendo Switch 2 Star Fox
